The wind blade transport semi-trailer is a kind of special trailer which is designed for windmill blade transport, the working length varies from 20 meters to 72 meters.
Wind blade trailer | wind blade transport semi-trailer | wind blade semi-trailer | wind blade transport semi-trailer
Description:
The wind blade transport semi-trailer is a kind of special trailer which is designed for windmill blade transport, the working length varies from 20 meters to 72 meters.
Transportability mainly depends on the extending length of the wind blade trailer. The windmill transport semi-trailer that we designed is able to extend 3 times in total, the total length of the wind blade semi-trailer after all extensions is about 56 meters. So the transportability is up to 72 meters in total.

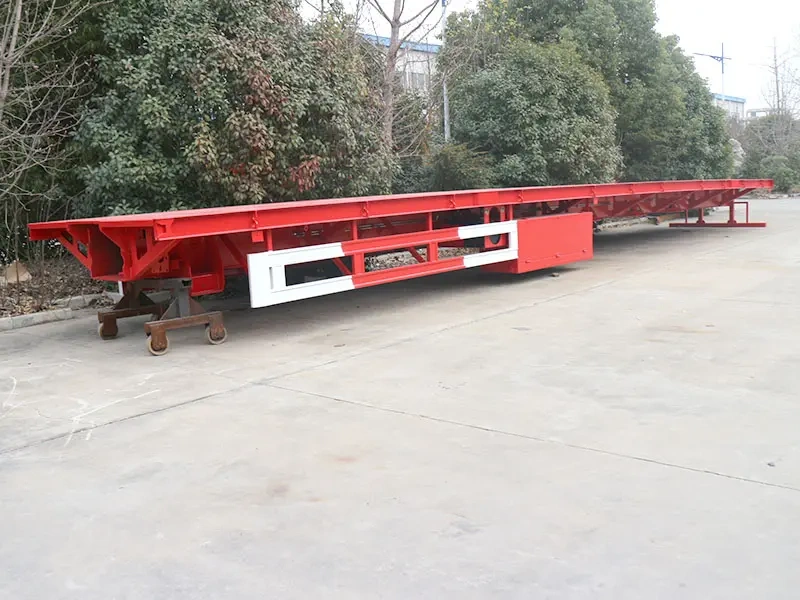

The main beam type of the wind blade semi-trailer is the signal main beam type that is shown in the photo. This is designed according to the customer's requirements. There's another model which is double the main beams. The difference between the two types will be designed according to the customer transporting road condition and the transporting ability.
Specification:
|
walking system |
Axles |
13-ton axles |
| Axles No. | 3-6 axles | |
| Tire model | optional | |
| Turning type | hydraulic control | |
| Tire No. | 12 pcs | |
| Breaking pads | 13-ton breaking pads | |
| Steering | self-steering | |
|
Trailer chassis |
Landing leg |
28-ton landing leg |
| floor plate thickness | 3mm | |
| floor plate type | checked steel | |
| electric input | 7 phrase | |
| lights | LED lights | |
| discharge pipe | yes | |
| Kingpin | 2.0 or 3.5 inch | |
|
tanker/box |
- |
- |
| - | - | |
| - | - | |
| - | - | |
| - | - |
Shipping solution:
By container. The wind blade transport semi-trailer can't be transported by container.
By breakbulk cargo ships. All size of the windmill transport semi-trailer is able to be transported by bulk cargo ships.
By RO-RO ships. All size of the wind blade transport semi-trailer is able to be transported by bulk cargo ships.
